Nader contactors cover standard and reversing AC contactors, modular contactors for building applications, vacuum contactors and high-voltage DC contactors. The product range is applicable to rated operational currents from 6A to 2650A for AC circuits and from 120A to 600A for DC circuits, with rated operational voltages up to AC1000V (50/60Hz) or DC1500V. Nader contactors are widely used for remote circuit switching, frequent starting and control of AC motors, building load control, industrial automation, photovoltaic and wind power systems, electric vehicles, charging piles and charging stations. 2021 Quick Selection Guide »

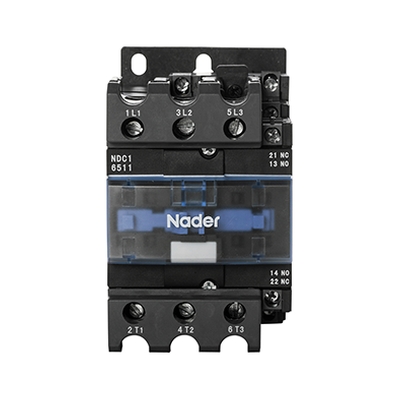

NDC1-09～95 series AC Contactor

NDC1-09～95 series AC Contactor

NDC1-09～95 series AC Contactor(hereafter called contactor) which used in 50Hz(60Hz) AC circuit with the rated voltage of 1000V. It is used inAC-3 type with the rated working voltage of 415V and rated working current of 9~95Ato realize distant connection and disconnection of the circuit and constant starting to control AC motors.

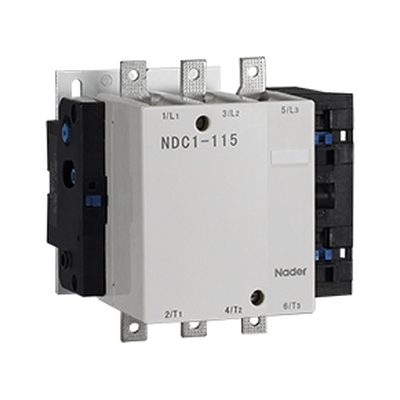

NDC1-115~2650 Series AC contactors

NDC1-115~2650 Series AC contactors

The NDC1-115~800 series of AC contactors(hereinafter referred to as contactors) have the AC 50Hz(or60Hz) and the rated insulation voltage of 1000V and are mainly used for the electric circuit with the rated working voltage of 415V/690 and the rated working current of 115~800A as well as the AC-3 utilization category for remotely connecting and breaking the circuit and frequently starting & controlling AC motors.They can be used as magnetic starters with the appropriate thermal overload relays to protect the circuit in which overload may occur. The NDC1-1250~2650 series of AC contactors(hereinafter referred to as contactors) have the AC 50Hz(or 60Hz)and the rated insulation voltage of 1000Vand are mainly used for the electric circuit with the rated working voltage of 690V and the rated working current of 1250~2650A as well as the AC-1 utilization category for remotely connecting and breaking the circuit.

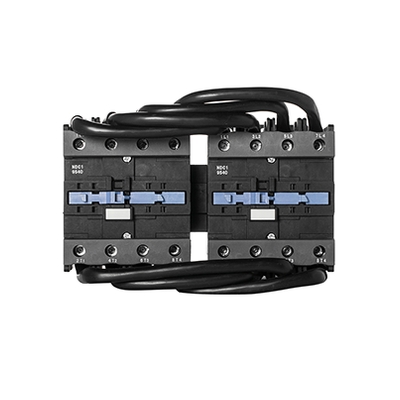

NDC1N-09~95 Series Directional Contactor

NDC1N-09~95 Series Directional Contactor

NDC1N-09~95 series of directional contactor have the AC 50Hz(or 60Hz) and the rated insulation voltage of 690V and are mainly used for the electric circuit with the rated working voltage of 415A and the rated working current of 44A as well as the motor and dual power control for controlling reversible operation or reverse braking.

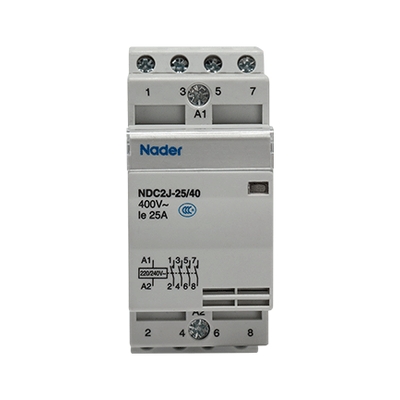

NDC2J Series Household Contactor

NDC2J Series Household Contactor

Contactor is mainly used in the circuit with AC 50Hz(or 60Hz) rated insulation voltage of 400V rated operational current less than or equal to 63A(in case of AC-7a) or rated operational current less than or equal to 32A(in case ofAC-7b) rated conditional short-circuit current less than or equal to 6kA.

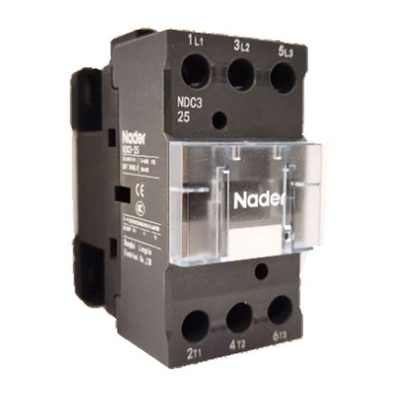

NDC3(ZE)-25/32/38 Series AC contactor

NDC3(ZE)-25/32/38 Series AC contactor

NDC3(ZE)-25/32/38 AC contactor is used in AC 50Hz(or 60Hz) rated insulation voltage is up to 690VFor frequent start and control of AC motors in AC circuits with rated voltage of 400V and rated current of25A~38A under the AC-3 service category.

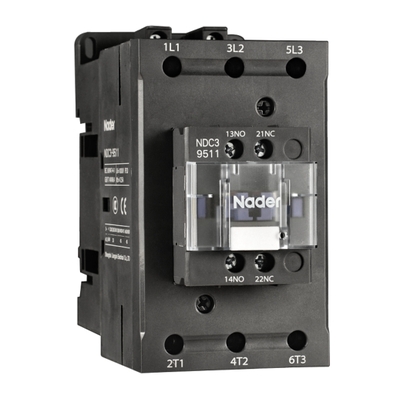

NDC3(GV、N)-40(11、11S)~95(11、11S) Series AC Contactor

NDC3(GV、N)-40(11、11S)~95(11、11S) Series AC Contactor

The NDC3(GV、N)-40(11、11S)~95(11、11S) AC contactors have the AC 50/60Hz and the rated insulation voltage of 1000Vand are mainly used for the AC circuit with the rated voltage of 415A and the rated working current of 40~95A as well as the AC-3 utilization category for frequently starting & controlling AC motors.
