NDC1N-09~95 Series Directional Contactor
Updated：July 17,2026 13:50PM

NDC1N-09~95 series of directional contactor have the AC 50Hz(or 60Hz) and the rated insulation voltage of 690V and are mainly used for the electric circuit with the rated working voltage of 415A and the rated working current of 44A as well as the motor and dual power control for controlling reversible operation or reverse braking.
2021 Quick Selection Guide »

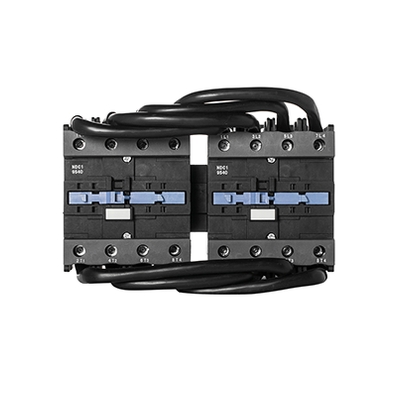

NDC1N-09~95

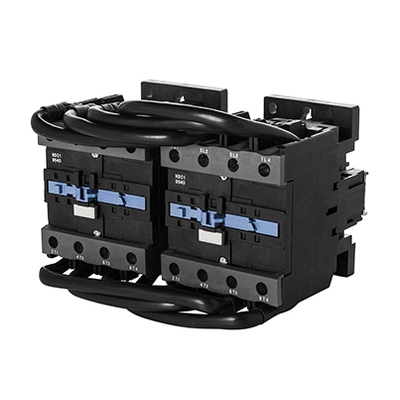

NDC1N-09~95

Features of NDC1N-09~95 Series

  • Can be used as magnetic starters with the appropriate thermal overload relays to protect the circuit in which overload may occur

Technology data of NDC1N-09~95 Series

Model NDC1(N)
-09		 NDC1(N)
-12		 NDC1(N)
-18		 NDC1(N)
-25		 NDC1(N)
-32		 NDC1(N)
-38		 NDC1(N)-
40		 NDC1(N)-
50		 NDC1(N)-
   65		 NDC1(N)-
80		 NDC1(N)-
95
Rated
operating current
Ie/A		 AC-3 415V 9 12 18 25 32 38 40 50 65 80 95
690V 6.6 8.9 12 18 21 21.5 34 39 42 49 49
AC-4 415V 3.5 5 7.7 8.5 12 13.9 18.5 24 28 37 44
690V 1.5 2 3.8 4.4 7.5 8 9 12 14 17.3 21.3
Conventional thermal current Ith A 25 25 32 40 50 50 60 80 80 125 125
Nominal insulation voltage Ui V 1000
Rated operational voltage Ue V 380/415 660/690

Datasheet of NDC1N-09~95 Series

NDC1N-09~95-Series-Contactor-Datasheet.pdf
