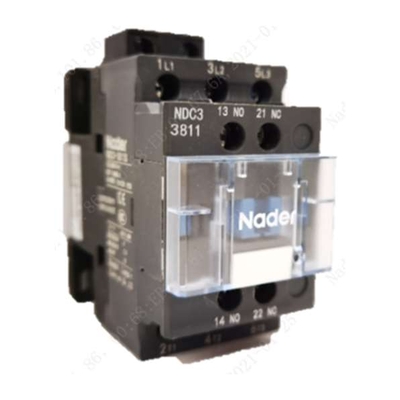

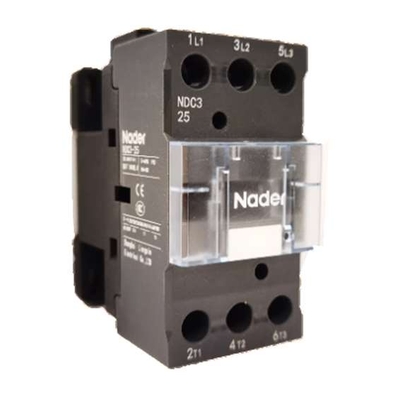

NDC3(ZE)-25/32/38 Series AC contactor

Home / Products / Contactor / NDC3(ZE)-25/32/38 Series AC contactor

Updated：July 17,2026 17:56PM

NDC3(ZE)-25/32/38 AC contactor is used in AC 50Hz(or 60Hz) rated insulation voltage is up to 690VFor frequent start and control of AC motors in AC circuits with rated voltage of 400V and rated current of25A~38A under the AC-3 service category.
2021 Quick Selection Guide »

Features of NDC3(ZE)-25/32/38 Series

A suitabie thermal overload relay can be added to form an electro magnetic starter to protect the circuit from possible overload

Technology data of NDC3(ZE)-25/32/38 Series

Model		NDC3-25	NDC3-32	NDC3-38
Rated currentle	AC-3 Ue 380/415V	25A	32A	38A
Set thermal current of the free air Ith( AC-1)	θ≤60℃	40A	50A	50A
Rated insulation voltage Ui		690V
Number of Poles		3	3	3
Max.Power of controlled motor AC-3 kW	220/240V	5.5	7.5	9
	380/400V	11	15	18.5
	415V	11	15	18.5
	440V	11	15	18.5
	500V	15	18.5	18.5
	660/690V	15	18.5	18.5
ULthe rated power of the three-phase motor (horsepower)	220~240V AC	7-1/2hp	10hp	10 hp
	380~415V AC	15 hp	20 hp	20 hp
	440~480V AC	15 hp	20 hp	20 hp
	550~600V AC	20 hp	25 hp	25 hp
AC-3 ( 6le,le)	Rated operating current(380/415V)	25A	32A	38A
	Electrical life 10⁴	160	160	140
	Frequency of Operation(h-1)	1200	600	600
AC-4(6le,6le)	Rated working current(380/415V)	20.9A	26.7A	26.7A
	Max.Power of controlled motor KW( 380/415V)	7.5	11	11
	Electrical life 10⁴	5	4.5	4.5
	Frequency of Operation(h-1)	150
