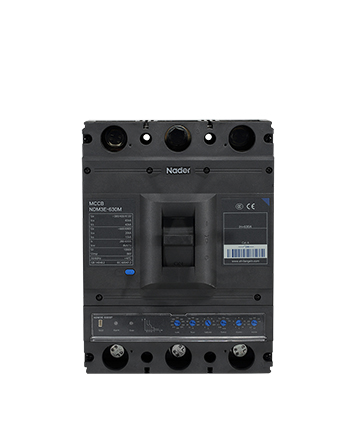

NDM3E Series Electronic Molded Case Circuit Breaker
Updated:August 01,2020 18:11PM

The NDM3E series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits.

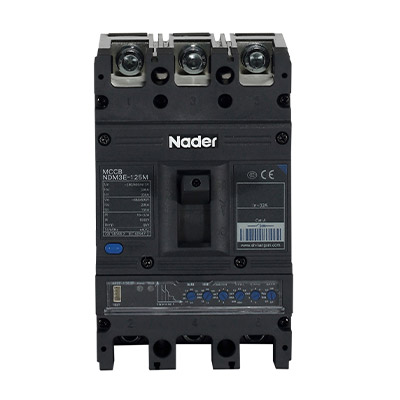

NDM3E-125

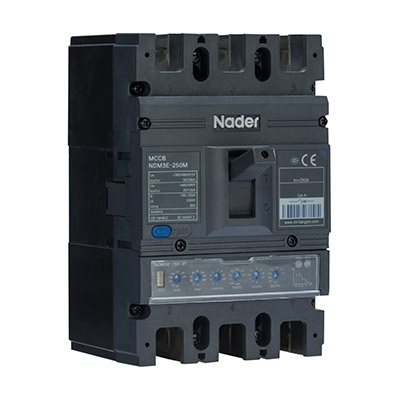

NDM3E-250-3P

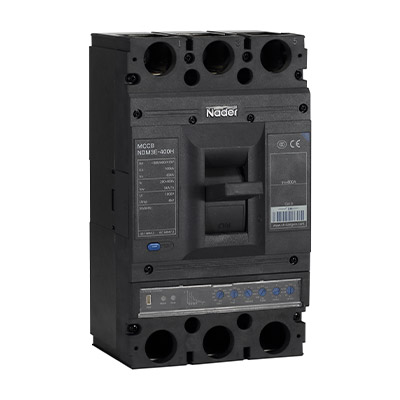

NDM3E-400

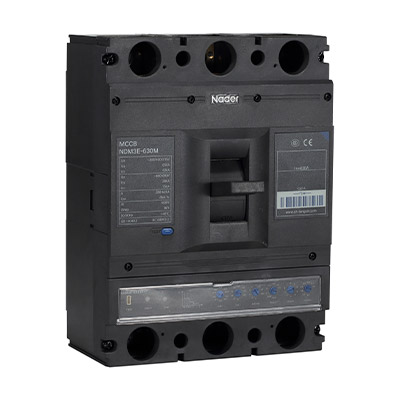

NDM3E-630

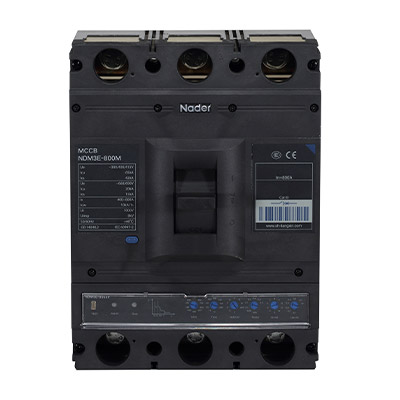

NDM3E-800

Description

Description of NDM3E Series

The NDM3E series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits with the AC 50/60HZ, the rated working voltage of AC 690V and rated working current of 1600A as well as infrequent motor starting. The NDM3E circuit breaker can provide optional modules with the communication function. Make the original circuit breaker upgrade to the communication circuit breaker conveniently. Realize "Four remotes" functions, namely, remote control, remote adjustment, remote measuring and remote communication. With the overload, short circuit and undervoltage protection functions, the circuit breaker can protect lines and power equipment from damage. Products are provided with communication modules and ground protection devices. They are widely used in the new energy, power, industrial control, real estate, electric power, telecom, rail transportation, project (public) construction and etc.



Features

Features of NDM3E Series

  • The circuit breaker is pided into Type C (basic type), Type L (standard type), Type M (relatively high breaking type) and Type H (high breaking type) according to its rated limit short-circuit breaking capacity. The circuit breaker features small size, high breaking capacity, short flashover, vibration resistance and etc.
  • The circuit breaker can adopt packaged accessories for quick installation, thus responding to the user's requirements, without adjustment.



Downloads and support

Find out more about NDM3E Series

NDM3-Series-MCCB-Datasheet.pdf



FAQs

Questions & Answers for NDM3E Series

  • What is a molded case circuit breaker?
    Moulded Case Circuit Breakers Explained. ... A moulded case circuit breaker (MCCB) is a type of electrical protection device that is used to protect the electrical circuit from excessive current, which can cause overload or short circuit.
  • What is the difference between MCCB and MCB?
    MCB is miniature circuit breaker which is used to break small currents. Like in domestic LT circuits. The ratings usually end up to 100 A. MCCB is a Module case circuit breaker which has a rugged construction as it can break larger currents usually from (100-1000A).
  • What is MCCB and its working?
    Molded Case Circuit Breaker (MCCB) is a circuit breaker and trip device assembled in a mould case. Also it can automatically cut off electric power in case of overload and short circuit. It is meant for higher rated current and is commonly used in Industrial applications.
  • What causes MCCB to trip?
    Circuit overloading is known to be the most common reason for circuit breaker tripping. It simply means that we're running too many heavy power-consuming devices at the same time on the same circuit. The next most dangerous cause is a short circuit.
  • How do molded case circuit breakers work?
    The traditional molded-case circuit breaker uses electromechanical (thermal magnetic) trip units that may be fixed or interchangeable. An MCCB provides protection by combining a temperature sensitive device with a current sensitive electromagnetic device. Both these devices act mechanically on the trip mechanism.
  • Why we use Mccb instead of MCB?
    If evaluated from their power capacities, the MCB is essentially used for low-current requirements, such as, home wiring or small electronic circuits; while the MCCB is better used for high-power requirements. Type of electrical switch which protects the circuit from overload or short circuit.
