Nader Circuit Breaker

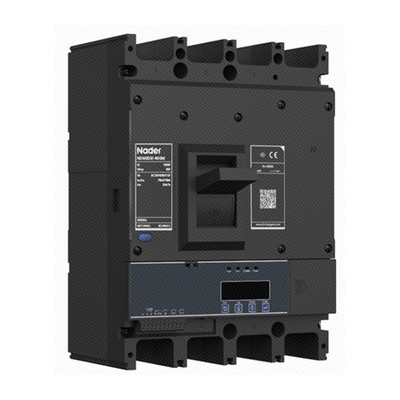

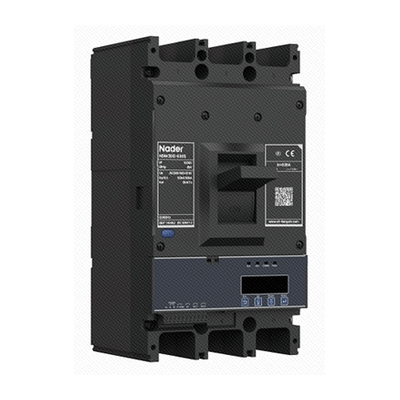

Features of NDM3DE Series

According to the rated ultimate short-circuit breaking capacity, the circuit breaker is classified into four types: S, M, H, and U. It breaks through the structural and dimensional limitations of existing IoT circuit breakers, featuring compact size and high breaking capacity.
It can feed back product information such as current, voltage, power, electrical energy, and service life to terminal devices, with meter-level accuracy. It is used for load-side detection and monitoring, reducing power grid operation and maintenance costs and providing necessary data for future energy efficiency systems.

Technology data of NDM3DE Series

Model		NDM3DE-125		NDM3DE-250
Frame size rated current Inm (A)		125		250
Rated current In (A)		32, 63, 100, 125		160, 200, 250
Number of poles		3, 4
Breaking capacity level		S	M	H	U
Rated ultimate short-circuit breaking capacity Icu	AC380 400/415V	36	50	70	100
Rated service short-circuit breaking capacity Ics	AC380 400/415V	36	50	70	75
Certification		CCC, TUV, CE

Model		NDM3DE-400		NDM3DE-630
Frame size rated current Inm (A)		400		630
Rated current In (A)		250, 400		400, 630
Number of poles		3, 4
Breaking capacity level		S	M	H	U
Rated ultimate short-circuit breaking capacity Icu	AC380 400/415V	50	70	85	100
Rated service short-circuit breaking capacity Ics	AC380 400/415V	50	70	85	85
Certification		CCC, TUV, CE
