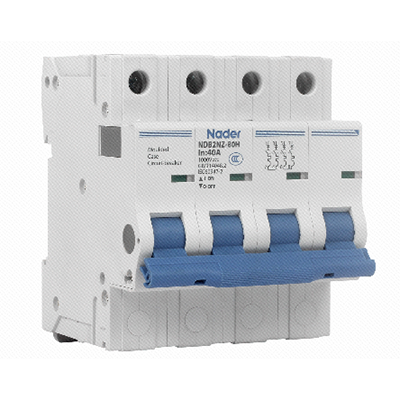

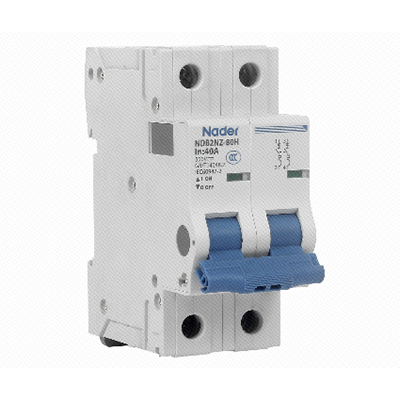

NDB2NZ-80H Series Molded Case Circuit Breaker

Home / Products / MCCB / NDB2NZ-80H Series Molded Case Circuit Breaker

Updated：July 17,2026 17:34PM

The NDB2NZ Series DC non-polarized molded case circuit breaker provides short-circuit protection overload protection control isolation and DC system protection functions. It is suitable for low-voltage distribution applications in industrial energy communication and infrastructure fields.
2021 Quick Selection Guide »

Features of NDB2NZ-80H Series

The product structure provides short-circuit current-limiting performance, resulting in high short-circuit breaking capacity.
Internal or external bridging options are available, with a compact mechanism and small size.
The wiring terminals at the bridging positions are sealed to help prevent electric shock and incorrect wiring.
Frame-type terminal structure ensures reliable wiring.
Non-polarized wiring enables reverse current protection, with multiple wiring methods for easier installation.
A variety of accessories can be fitted for convenient functional expansion.
Modular and standardized design allows flexible combinations.

Technology data of NDB2NZ-80H Series

Parameter	Specification
Product model	NDB2NZ-80H
Rated operational voltage (V) - CCC	DC250V (1P), DC500V (2P), DC750V (3P), DC1000V (4P)
Rated operational voltage (V) - UL1077	DC250V (1P), DC500V (2P), DC600V (3P), DC600V (4P)
Rated operational current (A)	6, 10, 16, 20, 25, 32, 40, 50, 63, 80
Number of poles	1P, 2P, 3P, 4P
Product certification	CCC, TUV, CE, UL1077 (special customization required)
