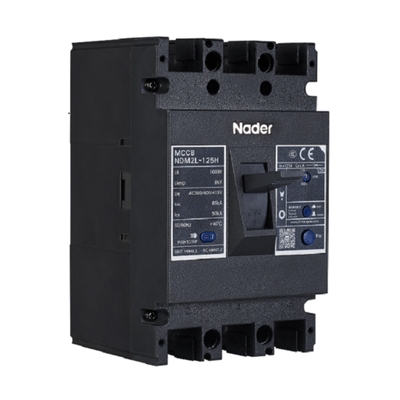

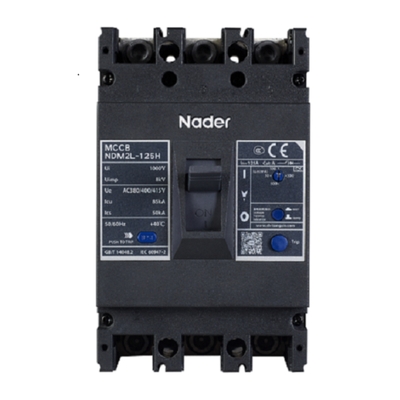

NDM2L series molded case leakage circuit breakerthe rated insulation voltage of1000Vfor AC 50Hz or 60Hzrated working voltage 380V/400V/415Vdo not frequentconversion and the motor is not frequent use.Circuit breakers with overloadshort circuitand undervoltage protectionto protect the line and power equipment from damage.AC-type leakage circuit breakersto ensure that they are tripped with the remainingsinusoidal alternating current of the DC component without any sudden or slow rise.Type A leakage circuit breakers are guaranteed to be tripped with respect to the residualsinusoidal current and the residual pulsating direct current(with or without specifiedsuperposed DC component)that is suddenly applied or slowly raised.
2021 Quick Selection Guide »
Features of NDM2L Series
- NDM2L series of leakage circuit breakers,product structure requirements areintegrated structure with leakage alarm does not trip function
Technology data of NDM2L Series
NDM2L-125 Series| Rated Voltage(V) | 380/400/415 |
| Rated insolution Voltage Ui(V) | 1000 |
| Frame Size | 125 |
| Rated ultimate breaking capacity Icu(kA) | NDM2L-125M&4P:52.5kA NDM2L-125H:85kA |
| Rated operated breaking capacity Ics(kA) | NDM2L-125M&4P:35kA NDM2L-125H:50kA |
| Operating cycles(times) | Charged:8000 uncharged:20000 |
| Pollution level | Ⅲ |
| Rated insulation voltage Uimp | 8kV |
| Model | NDM2L-250 | ||
| Rated current of frame Inm(A) | 250 | ||
| Rated current In(A) | 100,125,140,160,180,200,225,250 | ||
| Rated insulation voltage Ui(ACV) | 1000 | ||
| Rated impulse withstand voltage Uimp(V) | 8000 | ||
| Rated working voltage Ue (ACV) | 380/400/415 | ||
| Utilization category | A | ||
| Number of poles | 3 | 4 | |
| Breaking capacity level | M | H | / |
| Rated limit short-circuit breaking capacity Icu(kA) | 52.5 | 85 | 52.5 |
| Rated operating short-circuit breaking capacity Ics(kA) | 35 | 50 | 35 |
| Rated residual short-circuit making and breaking capacity I△m(kA) | 0.25 Icu | ||
| Model | NDM2L-400 | ||
| Rated current of frame Inm(A) | 400 | ||
| Rated current In(A) | 225,250,315,350,400 | ||
| Rated insulation voltage Ui(ACV) | 1000 | ||
| Rated impulse withstand voltage Uimp(V) | 8000 | ||
| Rated working voltage Ue(ACV) | 380/400/415 | ||
| Utilization category | A | ||
| Number of poles | 3 | 4 | |
| Breaking capacity level | M | H | / |
| Rated limit short-circuit breaking capacity Icu(kA) | 65 | 100 | 65 |
| Rated operating short-circuit breaking capacity Ics(kA) | 42 | 70 | 42 |
| Rated residual short-circuit making and breaking capacity I△m(kA) | 0.25 Icu | ||
| Model | NDM2L-630 | ||
| Rated current of frame Inm(A) | 630 | ||
| Rated current In(A) | 400,500,630 | ||
| Rated insulation voltage Ui(ACV) | 1000 | ||
| Rated impulse withstand voltage Uimp(V) | 8000 | ||
| Rated working voltage Ue(ACV) | 380/400/415 | ||
| Utilization category | A | ||
| Number of poles | 3 | 4 | |
| Breaking capacity level | M | H | / |
| Rated limit short-circuit breaking capacity Icu(kA) | 65 | 70 | 65 |
| Rated operating short-circuit breaking capacity Ics(kA) | 42 | 70 | 42 |
| Rated residual short-circuit making and breaking capacity I△m(kA) | 0.25 Icu | ||
Datasheet of NDM2L Series
NDM2L-125-Series-MCCB-Datasheet.pdfNDM2L-250-Series-MCCB-Datasheet.pdf
NDM2L-400-Series-MCCB-Datasheet.pdf
NDM2L-630-Series-MCCB-Datasheet.pdf
