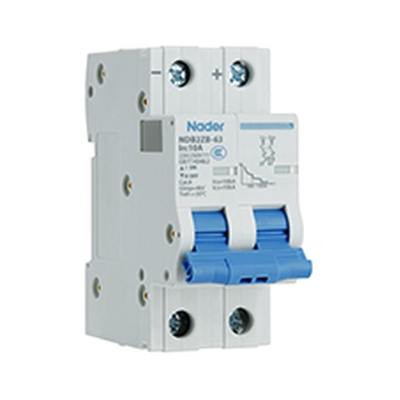

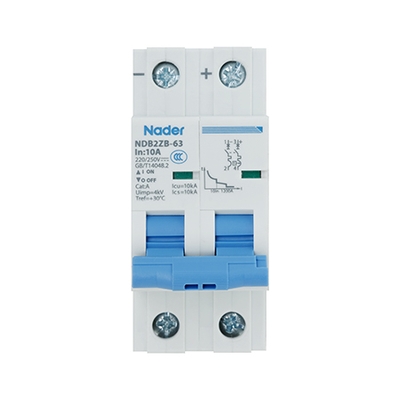

NDB2ZB-63 Series Miniature Circuit Breaker

Home / Products / MCB / NDB2ZB-63 Series Miniature Circuit Breaker

Updated：July 17,2026 17:50PM

The NDB2ZB-63 Series miniature circuit breaker provides three-stage protection including long-time delay overload protection short-time delay short-circuit protection and instantaneous short-circuit protection. It can be used in DC distribution systems with rated operational current below 63A enabling full selective protection with downstream circuit breakers. While ensuring short-circuit fault protection it effectively avoids misoperation of the upstream circuit breaker caused by downstream short-circuit current ensuring safe and reliable system operation. It also provides an isolation function.
2021 Quick Selection Guide »

Features of NDB2ZB-63 Series

Box-type terminal structure for reliable wiring.
Compatible with multiple accessories for easy functional expansion.
Modular and standardized design for flexible combinations.

Technology data of NDB2ZB-63 Series

Specification	NDB2ZB-63
Rated operational voltage (V)	DC220/250 DC440
Rated insulation voltage (V)	1000
Rated impulse withstand voltage (kV)	4
Rated current (A)	16, 20, 25, 32, 40, 50, 63
Rated ultimate short-circuit breaking capacity (kA)	DC220/250V: 10 (H: 20kA) DC440V: 10 (H: 20kA)
Rated service short-circuit breaking capacity (kA)	DC220/250V: 10 (H: 20kA) DC440V: 10 (H: 10kA)
Instantaneous tripping characteristic (In)	8: no tripping within 200 ms 10: tripping within 10–40 ms 1680A: tripping within <6 ms
Number of poles (P)	2
Operating performance	Mechanical life: 20,000 operations Electrical life: 1,500 operations
