NDB2Z-63 Series Miniature Circuit Breaker
Updated:August 07,2020 10:31AM

Rated current from 1A 2A 3A 4A 6A 10A 16A 20A 25A 32A 40A 50A to 63A; Rated operational voltage (Ue) 125/220/250VDC (1P) 250/440/500VDC (2P) 750VDC(3P) 1000VDC(4P); Rated limit short-circuit breaking capacity Icu: 10.0kA(1P 2P) and 7.5kA (3P 4P).

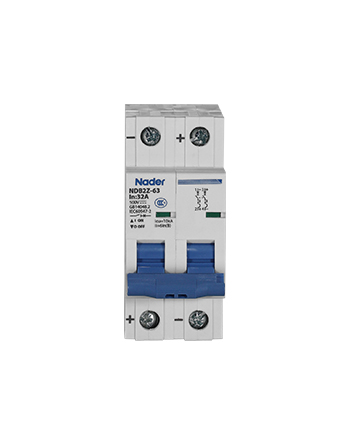

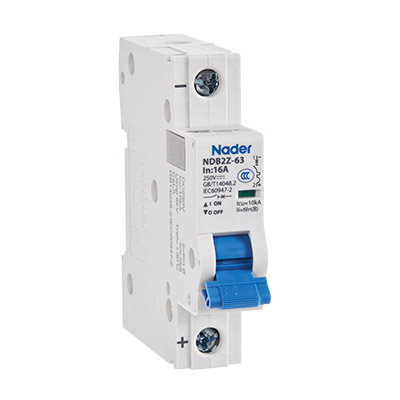

NDB2Z-63-B16-1P

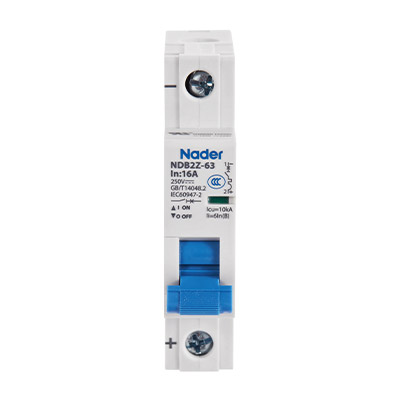

NDB2Z-63-B16-1P

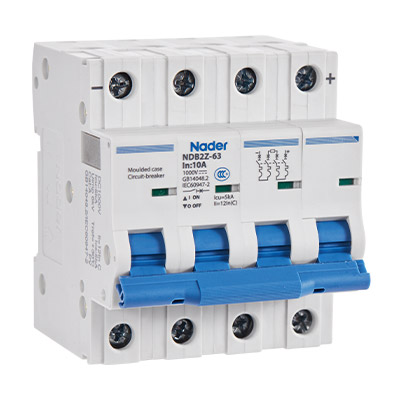

NDB2Z-63-C10-4P

Description

Description of NDB2Z-63 Series

The NDB2Z series circuit breakers are applicable to low-voltage terminal power distribution in such fields as industry, civil construction, energy, photovoltaic system, communication and infrastructure.



Features

Features of NDB2Z-63 Series

  • Quick closing: To ensure the reliable operation of the impact load and extend the life of the circuit breaker.
  • The product structure can limit the short circuit, thus improving the short circuit breaking capacity.
  • The product structure can limit the short circuit,:thus improving the short circuit breaking capacity.
  • Support a variety of accessories: Easy to expand the functions.
  • Modular: Any combination.



Technology data

Technology data of NDB2Z-63 Series

Rated Insulated Voltage 500V
Altitude ≤2000m
Ambient temperature -40℃~+70℃
Meet a criterion IEC 60947-2
Instantaneous Tripping Characteristic Type B, Type C



Downloads and support

Find out more about NDB2Z-63 Series

NDB2-Series-MCB-Datasheet.pdf



FAQs

Questions & Answers for NDB2Z-63 Series

  • What is the function of miniature circuit breaker?
    A Miniature Circuit Breaker (MCB) is an automatically operated electrical switch used to protect low voltage electrical circuits from damage caused by excess current from an overload or short circuit.
  • What is miniature circuit breaker how it works?
    A miniature circuit breaker (MCB) automatically switches off the electrical circuit during an abnormal condition of the network means in overload condition as well as faulty condition. Nowadays we use an MCB in a low voltage electrical network instead of a fuse. Handling an MCB is electrically safer than a fuse.
  • What is mean by miniature circuit breaker?
    miniature circuit breaker: a small trip switch operated by an overload and used to protect an electric circuit, esp a domestic circuit as an alternative to a fuse.
  • How does a house breaker work?
    Inside each circuit breaker is a spring hooked over a small piece of solder (a melt-able fusible alloy). Each breaker is connected to an electrical wire that runs through your house. The electricity that flows through your house runs through the solder.
  • What is the advantage of miniature circuit breaker?
    MCB (Miniature Circuit Breaker) is a circuit breaker with optimum protection facilities of overcurrent and short circuit only. Its basic function is to detect the fault condition and interrupt the current flow. it avoids overheating in case of excess current & provides fire protection.
  • What is the difference between MCCB and MCB?
    MCB is miniature circuit breaker which is used to break small currents. Like in domestic LT circuits. The ratings usually end up to 100 A. MCCB is a Module case circuit breaker which has a rugged construction as it can break larger currents usually from (100-1000A).
