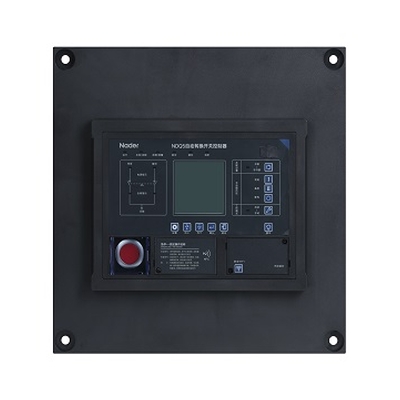

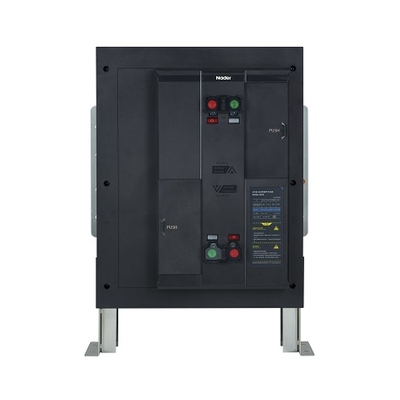

NDQ5-4000 Series Automatic Transfer Switching Equipment (ATSE)
Updated：July 17,2026 17:48PM
The NDQ5-4000 automatic transfer switching equipment is a high-performance PC-class automatic transfer switch with a utilization category of AC-33A. Suitable for emergency power supply systems with rated operational voltage up to AC415V rated frequency of 50/60Hz and rated current from 400A to 4000A. It is used for automatic transfer between two power sources to ensure the continuous safe and reliable operation of important loads.
2021 Quick Selection Guide »
Features of NDQ5-4000 Series
- Neutral overlapping transfer function, with overlapping time customizable according to customer requirements.
- Patented contact anti-bounce technology helps prevent arc reignition, achieving utilization category AC-33A.
- Multiple short-time withstand current ratings meet the short-circuit withstand requirements of different system loads, up to 100kA.
- Supports in-phase transfer, delayed transfer, parallel transfer, and neutral overlapping transfer functions.
Technology data of NDQ5-4000 Series
| ATSE Model | NDQ5-4000 | ||||
| Rated operational current Ie (A) | 400、500、630 | 800、1000、1250、1600 | 2000、2500 | 3200、4000 | |
| Rated operational voltage Ue (V) | AC220/230/240、AC380/400/415 | ||||
| Number of poles | 3, 4, N3 (products with neutral overlapping transfer function) | ||||
| Utilization category | AC-33A | ||||
| Rated short-time withstand current Icw (kA) | AC380/400/415V |
66/3s 85/1s 100/60ms |
|||
| Equipment class | Dedicated PC class | ||||
| Transfer category | In-phase transfer / delayed transfer / parallel transfer | ||||
| Position of main contacts | Three-position | ||||
