NDB6-125 Series Circuit Breaker
Updated:April 14,2021 12:26PM

Rated current type C including: 63A 80A 100A 125A type D including: 63A 80A 100A; Rated operational voltage (Ue): 230/240VAC (1P) 400/415VAC (2P 3P 4P); Rated limit short-circuit breaking capacity Icu: 15.0Ka.
2021 Quick Selection Guide >>

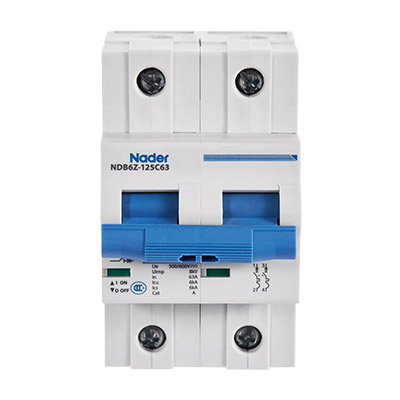

NDB6-125 Series

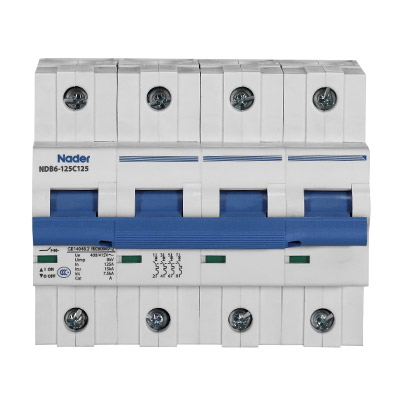

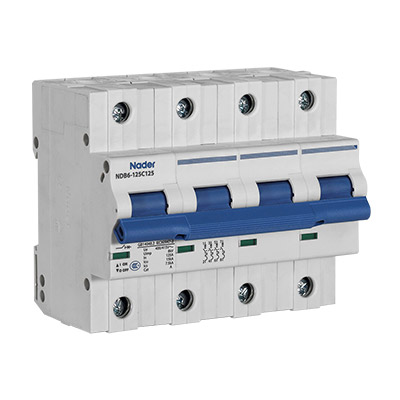

NDB6-125 C125A-4P


Description of NDB6-125 Series

The NDB6-125 series of circuit breakers are applicable to the low-voltage terminal distribution in the industry, civil buildings, energy, communication, infrastructure and other fields, providing the overload and short circuit protection in the DC60 system.



Features of NDB6-125 Series

  • Quick closing: To ensure the reliable operation of the impact load and extend the life of the circuit breaker.
  • Frame wiring structure: Reliable wiring.
  • High breaking.


Technology data

Technology data of NDB6-125 series

Rated nominal insulation voltage 1000V
Altitude ≤2000m
Ambient temperature -40℃~+70℃
Meet a criterion IEC 60947-2
Instantaneous Tripping Characteristic Type C, Type D

Downloads and support

Find out more about NDB6-125 Series



Questions & Answers for NDB6-125 series

  • What is the function of miniature circuit breaker?
    A Miniature Circuit Breaker (MCB) is an automatically operated electrical switch used to protect low voltage electrical circuits from damage caused by excess current from an overload or short circuit.
  • What is miniature circuit breaker how it works?
    A miniature circuit breaker (MCB) automatically switches off the electrical circuit during an abnormal condition of the network means in overload condition as well as faulty condition. Nowadays we use an MCB in a low voltage electrical network instead of a fuse. Handling an MCB is electrically safer than a fuse.
  • What is mean by miniature circuit breaker?
    miniature circuit breaker: a small trip switch operated by an overload and used to protect an electric circuit, esp a domestic circuit as an alternative to a fuse.
  • How does a house breaker work?
    Inside each circuit breaker is a spring hooked over a small piece of solder (a melt-able fusible alloy). Each breaker is connected to an electrical wire that runs through your house. The electricity that flows through your house runs through the solder.
  • What is the advantage of miniature circuit breaker?
    MCB (Miniature Circuit Breaker) is a circuit breaker with optimum protection facilities of overcurrent and short circuit only. Its basic function is to detect the fault condition and interrupt the current flow. it avoids overheating in case of excess current & provides fire protection.
  • What is the difference between MCCB and MCB?
    MCB is miniature circuit breaker which is used to break small currents. Like in domestic LT circuits. The ratings usually end up to 100 A. MCCB is a Module case circuit breaker which has a rugged construction as it can break larger currents usually from (100-1000A).
