NDQ2A Series Automatic Transfer Switching Equipment (ATSE)
Updated:August 13,2020 12:16PM

Rated current: 16A 25A 32A 40A 50A 63A 80A 100A 125A; Rated working voltage Ue: 230VAC/400VAC; Number of poles have 2Poles 3Poles 4Poles is available; Rated limited short-circuit current Iq: 10 kA; Operating performance is 6000 times with electricity is 10000 times without electricity.

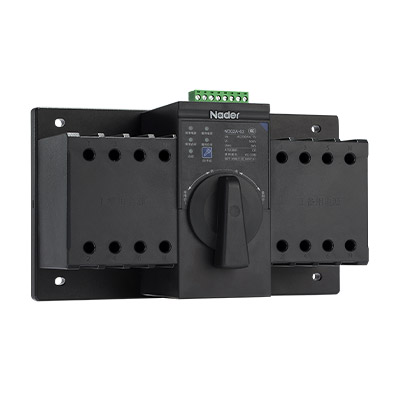

NDQ2A-63-4P

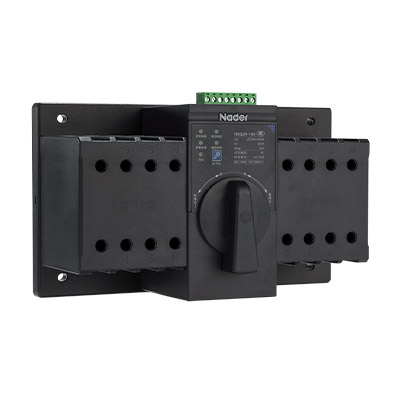

NDQ2A-100-4P

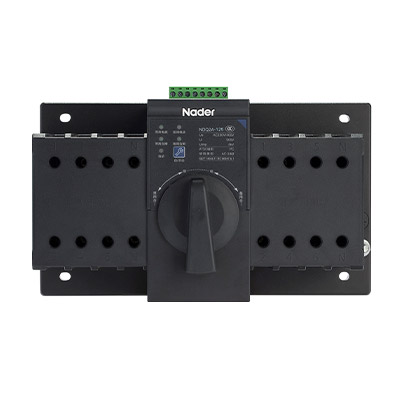

NDQ2A-125

Description

Description of NDQ2A Series

The automatic transfer switch is composed of one or more switching devices for automatically disconnecting the load circuit from one power supply and connecting it to another electrical appliance. To be designed in strict accordance with national standards, NDQ2A series of automatic transfer switches are applicable to the power distribution system with the rated voltage of AC400V(50Hz/60Hz), which are widely used in construction, industrial control, telecommunication, power and other fields over the years, with the reliability and stability recognized by many customers.



Features

Features of NDQ2A Series

  • PC-gradeproducts adopt our variant disconnecting switches of the miniature circuit breaker as actuators with simple but reliable structure.
  • Using the PIC single chip as the control core, the intelligent controller is powerful and easy to expand with the strong anti-interference ability.
  • Reliable mechanical interlocking device and electric interlocking protection are provided between mechanisms so as to prevent the occurrence of simultaneous closing.



FAQs

Questions & Answers for NDQ2A Series

  • What are the two types of automatic transfer switches?
    There are two basic types of automatic transfer switches, circuit breaker and contactor. The circuit breaker type has two interlocked circuit breakers, so only one breaker can be closed at any anytime. The contactor type is a simpler design that is electrically operated and mechanically held.
  • How do automatic transfer switches work?
    How Does an Automatic Transfer Switch Work? An automatic transfer switch, or ATS switch, connects your standby generator to your home. ... When the transfer switch detects a power outage, it switches your home to generator power. Afterward, it detects when the power is restored and switches your home back to utility power.
  • What is Auto Transfer Switch?
    A transfer switch is an electrical switch that switches a load between two sources. ... An Automatic Transfer Switch (ATS) is often installed where a backup generator is located, so that the generator may provide temporary electrical power if the utility source fails.
  • Do I need a permit to install a generator transfer switch?
    Technically yes, you need a permit from the local authorities whenever you install any permanent additions to your house. Generator transfer switches are no exception. However, if you hire a certified electrician for the installation, they will usually be able to sort out the permits on your behalf.
  • Which is better transfer switch or interlock?
    Interlock switches are usually less sophisticated and therefore less expensive than automatic transfer switches. They require training and an understanding of the building's electrical system for safe use.
  • Can you run a generator without a transfer switch?
    It's not only less safe to run a generator without a transfer switch, but you'll limit the devices that your generator can power,” says Dave Trezza, who oversees generator testing for Consumer Reports.
