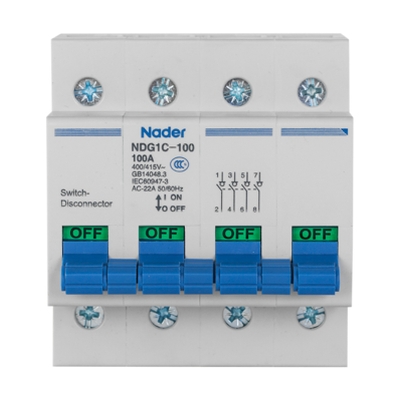

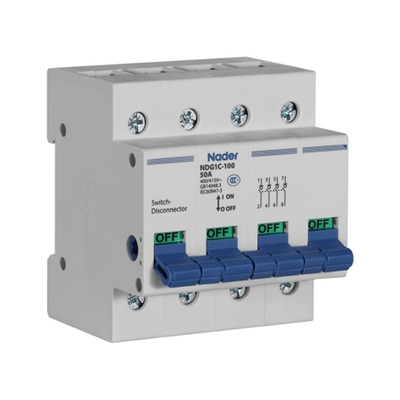

NDG1C Series Disconnector
Updated：July 17,2026 17:58PM
The NDG1C Series disconnector is suitable for AC 50Hz/60Hz circuits with rated voltage up to 415V and rated current up to 100A. It is used for circuit isolation in building and similar facilities as well as industrial distribution systems. It can also be used for infrequent switching operations.
2021 Quick Selection Guide »
Features of NDG1C Series
- Contact structure: reliable switching performance and improved short-time withstand current.
- Dual-contact design improves short-time withstand performance.
Technology data of NDG1C Series
| Product Model | NDG1C-100(1P) | NDG1C-100(2P) | NDG1C-100(3P) | NDG1C-100(4P) |
| Utilization category | AC-22A | AC-22A | AC-22A | AC-22A |
| Rated operational voltage (V) | AC 230/240V | AC 400/415V | AC 400/415V | AC 400/415V |
| Rated current (A) | 16, 20, 25, 32, 40, 50, 63, 80, 100 | 16, 20, 25, 32, 40, 50, 63, 80, 100 | 16, 20, 25, 32, 40, 50, 63, 80, 100 | 16, 20, 25, 32, 40, 50, 63, 80, 100 |
| Product certification | CCC, TUV, CE | CCC, TUV, CE | CCC, TUV, CE | CCC, TUV, CE |
